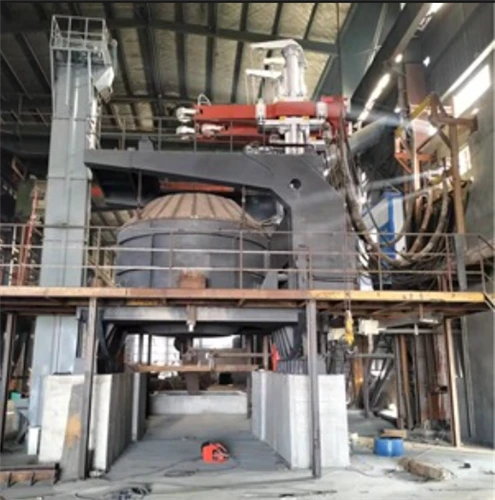

Electric Arc Furnace (EAF): Key Features & Steel Grades
Key Features
Electric arc steelmaking furnaces rely primarily on electric energy as their power source. Electric energy discharges and forms an arc between graphite electrodes and the furnace charge, generating extremely high temperatures ranging from 2,000℃ to over 6,000℃. The scrap steel feedstock is melted through arc radiation, thermal convection and heat conduction. During most of the melting process, the high-temperature heat source is surrounded by the furnace charge, and heat loss from high-temperature exhaust gas is relatively limited. As a result, its thermal efficiency is higher than that of converters and other steelmaking equipment. In addition, electric heating enables precise furnace temperature control, allowing heating operations to be performed under any conditions required by the process - whether in oxidizing or reducing atmospheres, at atmospheric pressure or under vacuum.
Process & Equipment Advantages
Electric arc furnace steelmaking features a short process flow, simple equipment, convenient operation, relatively easy pollution control, low construction investment and a small footprint. Unlike converter steelmaking, it does not depend on a large-scale ironmaking system.
Feedstock Flexibility
Electric arc furnace steelmaking is highly adaptable to various feedstocks. It mainly uses scrap steel as raw material, but can also process both solid and liquid iron-bearing materials such as hot metal (from blast furnaces or cupolas), direct reduced iron (DRI), hot briquetted iron (HBI) and pig iron ingots.
Process Versatility
Thanks to controllable furnace atmosphere and easy adjustment or replacement of furnace slag, electric arc furnaces can complete complex operations across multiple stages within a single operating system - including melting, decarburization, dephosphorization, degassing, inclusion removal, temperature control and composition adjustment (alloying). Electric arc furnace steelmaking supports intermittent production and allows flexible switching between product grades within a certain range. Moreover, modern electric arc furnaces can extensively use auxiliary energy sources, such as heavy oil, light oil, pulverized coal and natural gas injection. This makes the EAF steelmaking process highly adaptable, operationally flexible and widely applicable.
Product Quality
Electric arc furnaces can not only produce high-quality steel with low phosphorus, sulfur and oxygen content, but also perform alloying with a variety of elements - including easily oxidizable elements such as lead, boron, vanadium, titanium and rare earths - to manufacture various premium and alloy steels. Examples include ball bearing steel, stainless and acid-resistant steel, tool steel, electrical steel, heat-resistant steel, magnetic materials and special alloys.
Global Development Trend
Internationally, short-process EAF steelmaking enterprises generally adopt high-output electric arc furnaces. The traditional three-stage operation process with a refining period has been gradually replaced by combined processes such as secondary refining, while electric arc furnaces and their auxiliary facilities have become more sophisticated and rational. The proportion of EAF steel output in total global steel production is rising year by year.
Steel Grades Produced
The main raw materials for electric arc steelmaking furnaces are solid scrap steel, supplemented by alloying materials and pig iron for carbon content adjustment. Direct reduced iron or a portion of hot metal can also be used, offering a wide range of feedstock options. Therefore, with the exception of certain ultra-low-carbon steel grades, varieties requiring special processes such as vacuum treatment, and special alloy materials, nearly most steel grades can be smelted in electric arc furnaces.
