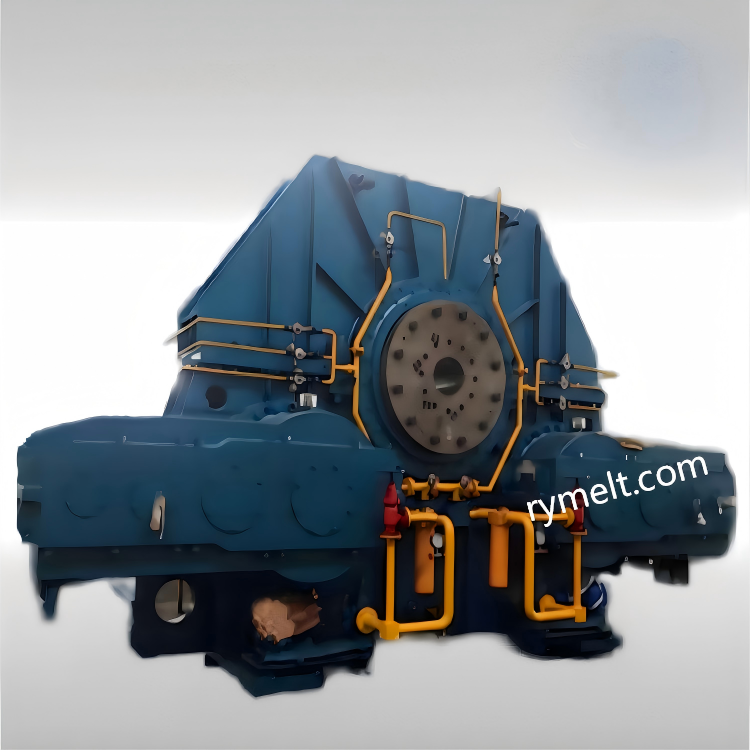

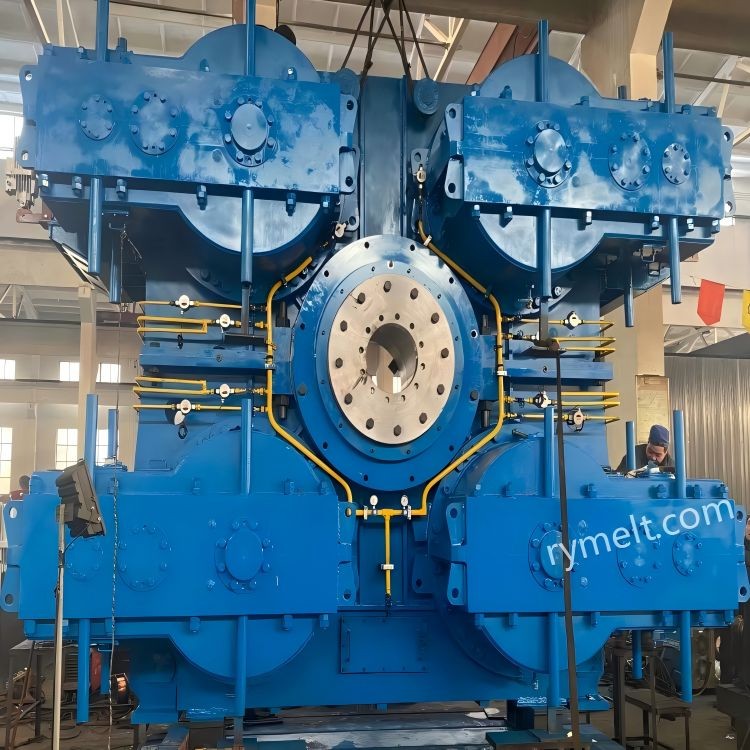

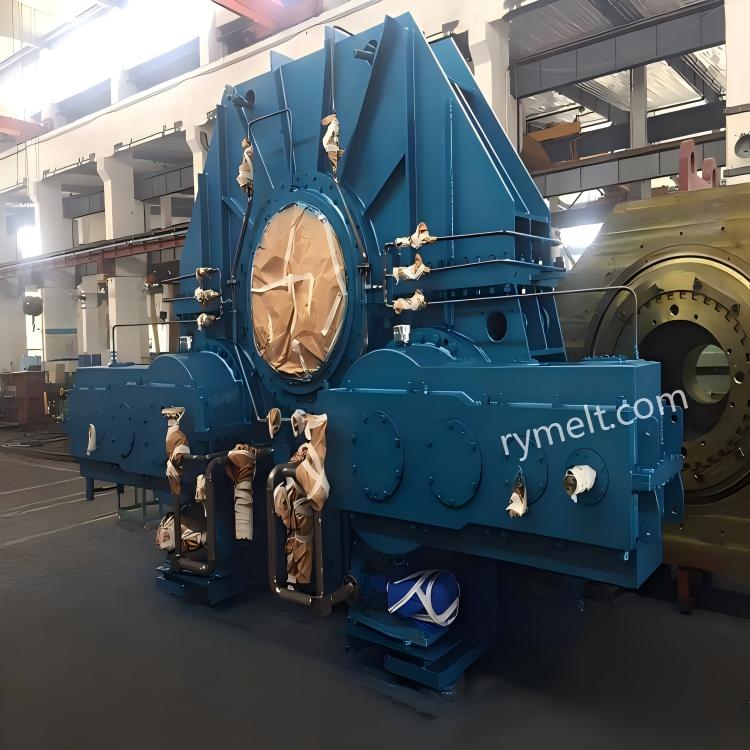

Function of Converter Tilting Gearbox
The Converter Gearbox is used in the converter tilting drive system. Its main functions include:
Controlling the tilting and rotation of the converter vessel
Ensuring stable pouring of molten steel and slag discharge
Providing precise position control during steelmaking operations
Supporting emergency tilting and safety operation requirements
The Converter Gearbox is one of the most critical safety-related transmission components in steelmaking equipment.
Working Conditions of Converter Tilting Gearbox
The Converter Gearbox operates under severe industrial conditions:
Heavy shock loads during converter tilting
High thermal radiation from molten steel
Frequent start-stop and reversing cycles
Dust, scale, and harsh steel plant environment
These conditions require the Converter Tilting Gearbox to have extremely high reliability and structural strength.
Design Features of Converter Tilting Gearbox
The Converter Tilting Gearbox is typically designed with the following features:
High torque and overload capacity
Heavy-duty multi-stage gear reduction system
Reinforced housing structure for impact resistance
High-strength alloy steel gears with carburizing and quenching
Forced lubrication and cooling system
Reliable sealing system against dust and heat
Key focus: safety, durability, and impact resistance
Purchasing Key Points for Converter Tilting Gearbox
When selecting a Converter Gearbox, engineering evaluation is essential to ensure safe and reliable operation.
Required technical parameters
- Converter capacity (steelmaking furnace tonnage)
- Output torque requirement
- Tilting speed and control accuracy
- Load characteristics (shock load and cycle frequency)
- Working environment temperature and radiation level
Key design requirements
- Gear material: carburized alloy steel with high strength and wear resistance
- Safety factor: high overload margin for emergency operation
- Bearing system: heavy-duty industrial bearings with long service life
- Lubrication system: forced circulation oil lubrication
- Sealing system: high protection against dust and high temperature
Reliability and safety requirements
- Redundant design for emergency operation
- Long design life (typically 20+ years)
- Stable operation under extreme impact conditions
- Optional condition monitoring (vibration and temperature sensors)
Summary
The Converter Tilting Gearbox is a critical transmission and safety component in steelmaking converter systems. It directly affects the stability and safety of the steelmaking process.
Proper selection should be based on:
Accurate furnace capacity and torque requirements
Real working load conditions
Proven supplier experience in steelmaking applications
A correctly designed Converter Tilting Gearbox ensures safe, stable, and efficient operation of the converter system.
