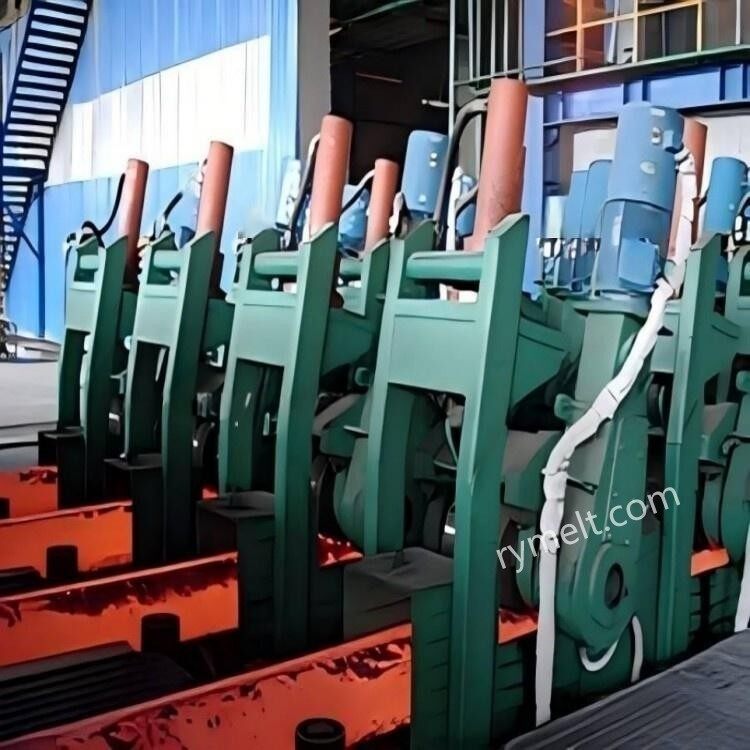

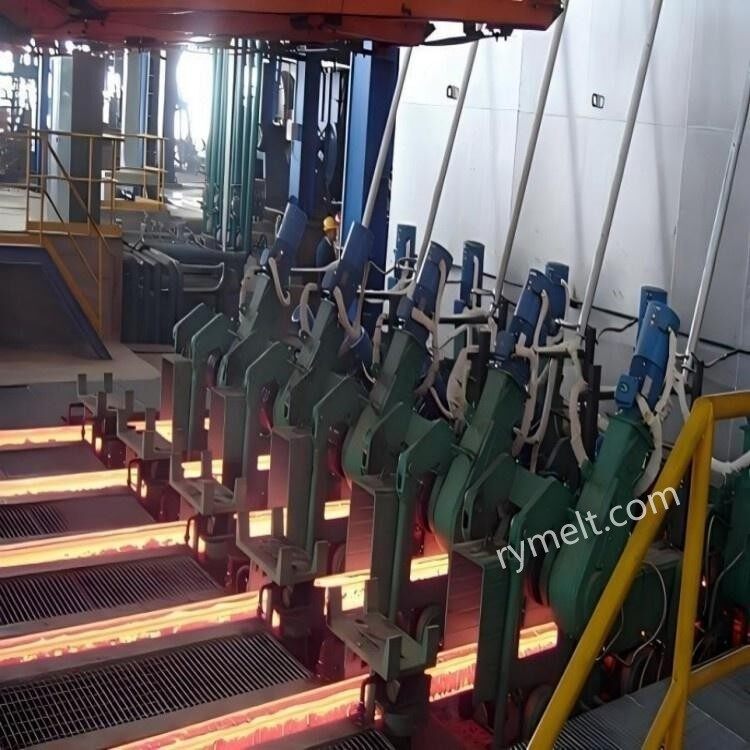

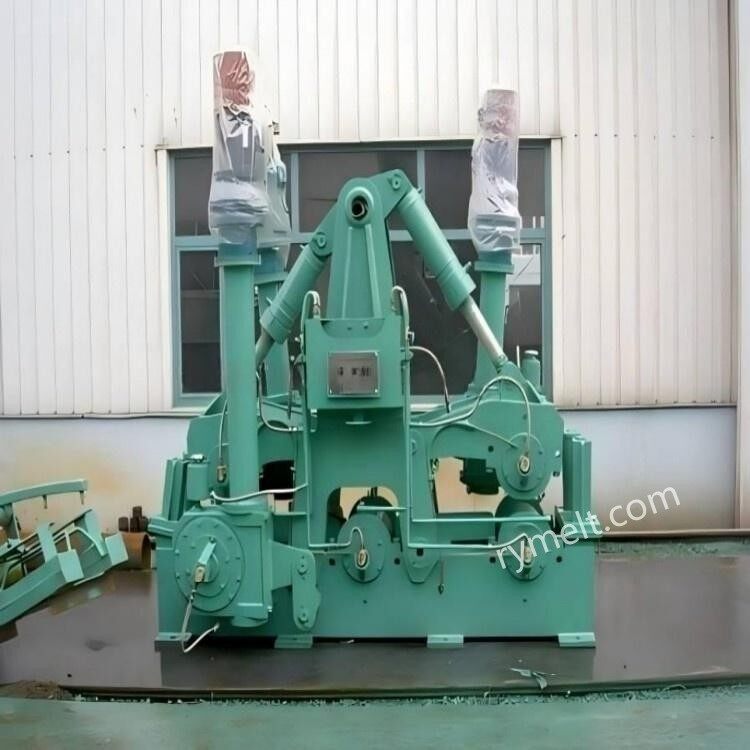

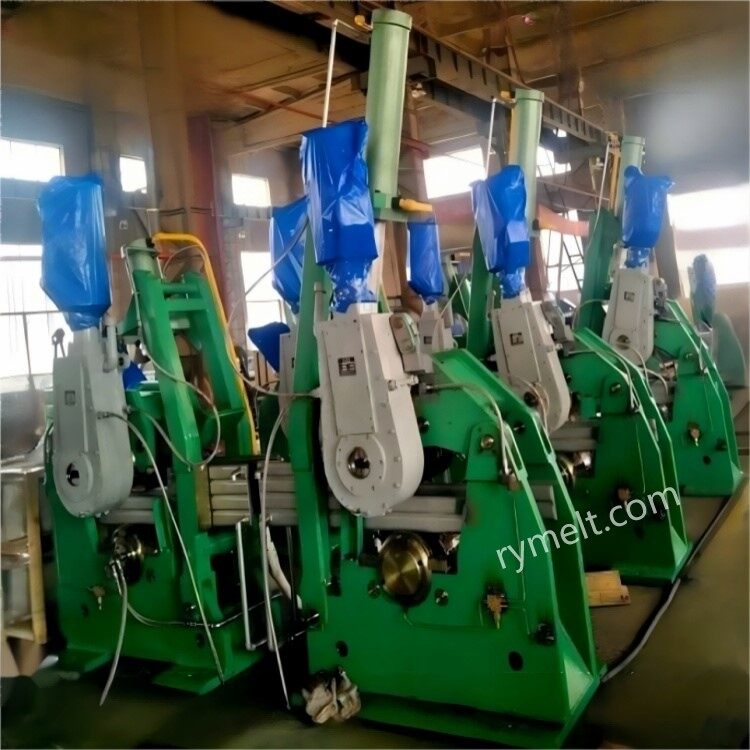

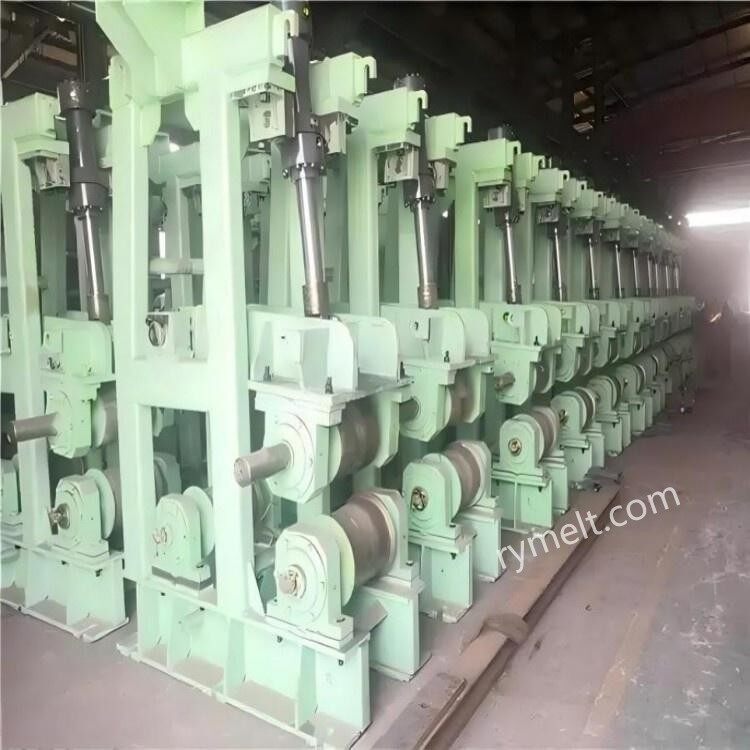

Withdrawal Straightening Machine

Pulling billet: pulling the high temperature billet produced by continuous casting machine out of the copper mould, and maintaining a stable pulling speed.

Straightening billet: straighten the billet to eliminate bending and deformation.

Controlled Cooling: Optimizes the internal organization and mechanical properties of the billet by controlling the cooling rate.

Transportation of billet: Transportation of straightened billet to subsequent processes (e.g. cutting, rolling, etc.).

The billet is pulled from the copper mould of the continuous casting machine and enters the straightening machine.

The straightening rolls pull the billet at a set speed to maintain a stable straightening process.

The billet passes through a set of straightening rollers, which exert pressure on the billet to eliminate bending and deformation.

The cooling system cools the billet to control its temperature and organization.

The straightened billet is transported to the subsequent process for further processing.

Equipment Maintenance: Regularly check the billet pulling rollers, straightening rollers and cooling system to ensure the normal operation of the equipment.

Parameter Adjustment: According to the material, size and temperature of the billet, adjust the drawing speed, straightening force and cooling parameters reasonably.

Operation safety: the operator should be trained and comply with the safety operation regulations.

Our company has many years of experience in the production and marketing of withdrawal straightening machine, with professional technical personnel, according to the individual needs of customers, production and processing. The above parameter data can be used for reference, if you have specific needs, please feel free to contact us.
